3M™ DBI-SALA® Nano-Lok™ Tie-Back Twin-Leg Quick Connect Self Retracting Lifeline, Web

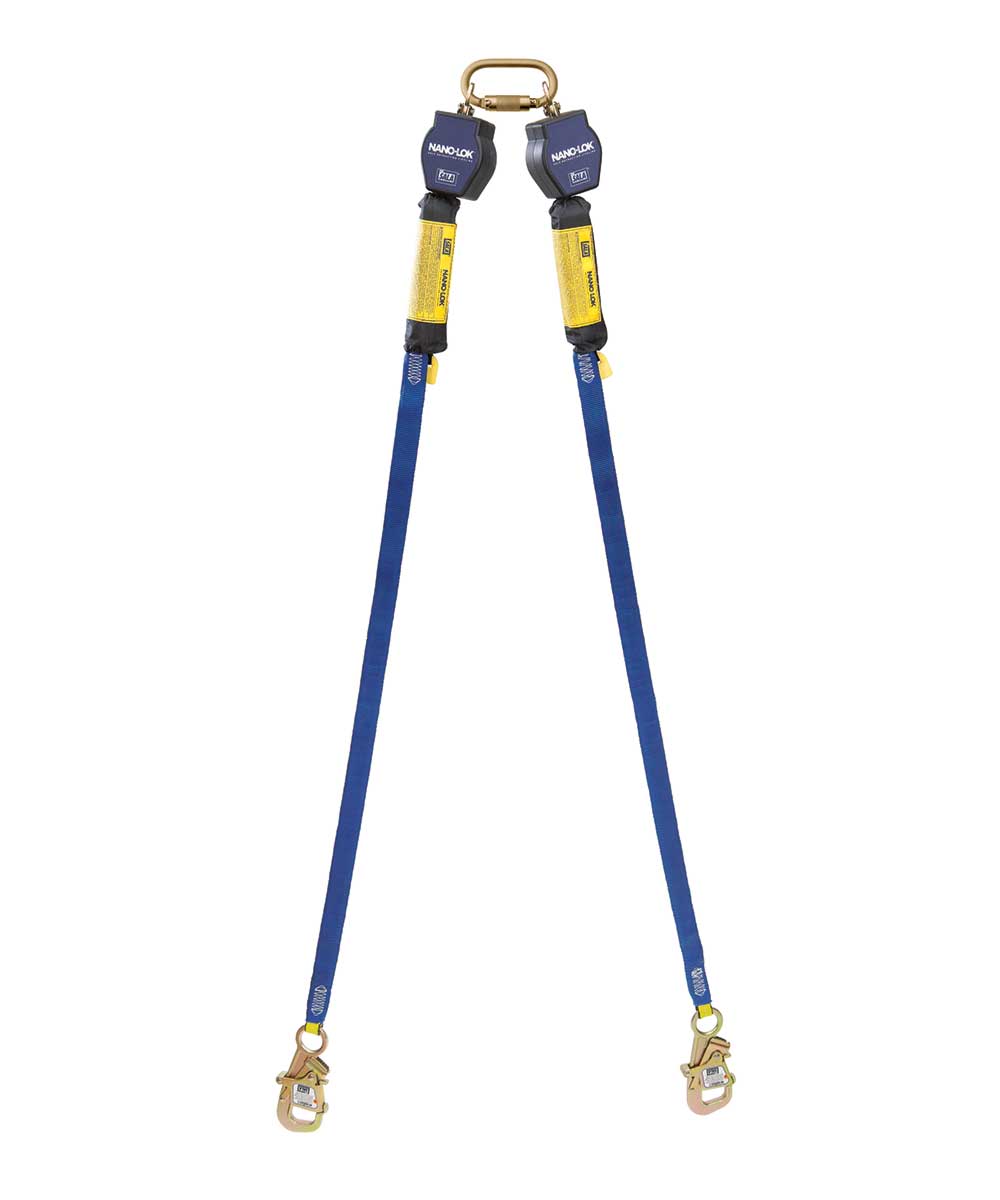

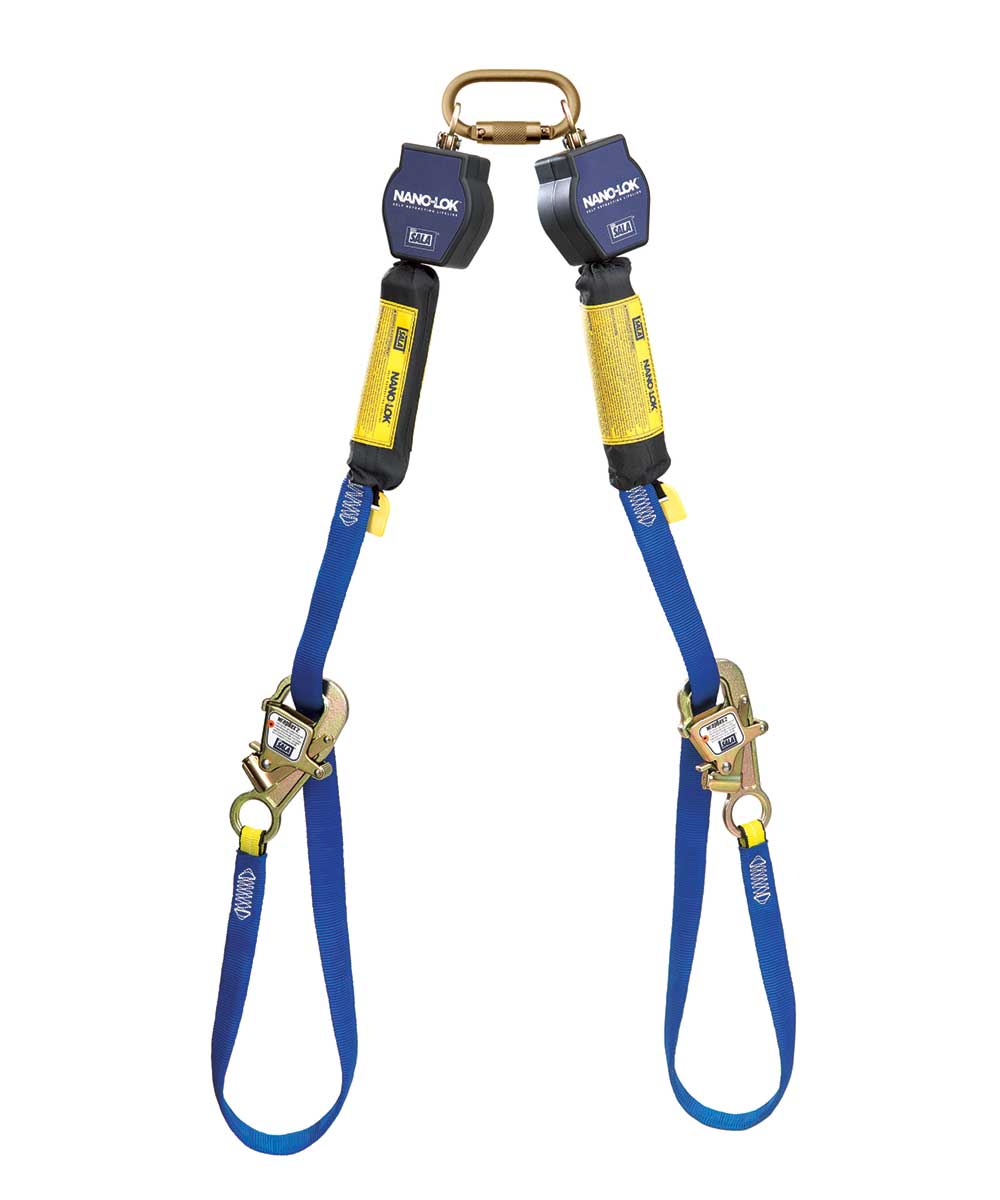

9 ft. (2.7m) twin-leg tie-back type with 3/4″ (19mm) Dyneema® fiber and polyester web and tie-back hook, quick connector for harness (fixed D-ring) mounting.

Nano-Lok™ is ergonomically designed for ease-of-use and is ideal for direct connection to most harnesses. The extremely compact and lightweight design is virtually unnoticeable on your back, staying out of the worker’s way and making it ideal as a lanyard replacement. Whether your application requires single or twin leg configurations, mounting to an overhead anchor or for connection directly to harness, there are more than 30 models to choose from to suit almost any application. Nano-Lok™ locks quickly—stopping a fall within inches—providing more protection at low heights. In addition, tension is always kept on the lifeline, which reduces dragging, snapping and trip falls. Both features are key safety improvements.

$800.23
SKU: DS-3101374
Category: SRD (Retractables)

Description

  • 9 ft. (2.7m)  twin-leg tie-back type with 3/4″ (19mm) Dyneema® fiber and polyester web and tie-back hook, quick connector for harness mounting.
  • Twin-leg 100% tie-off design

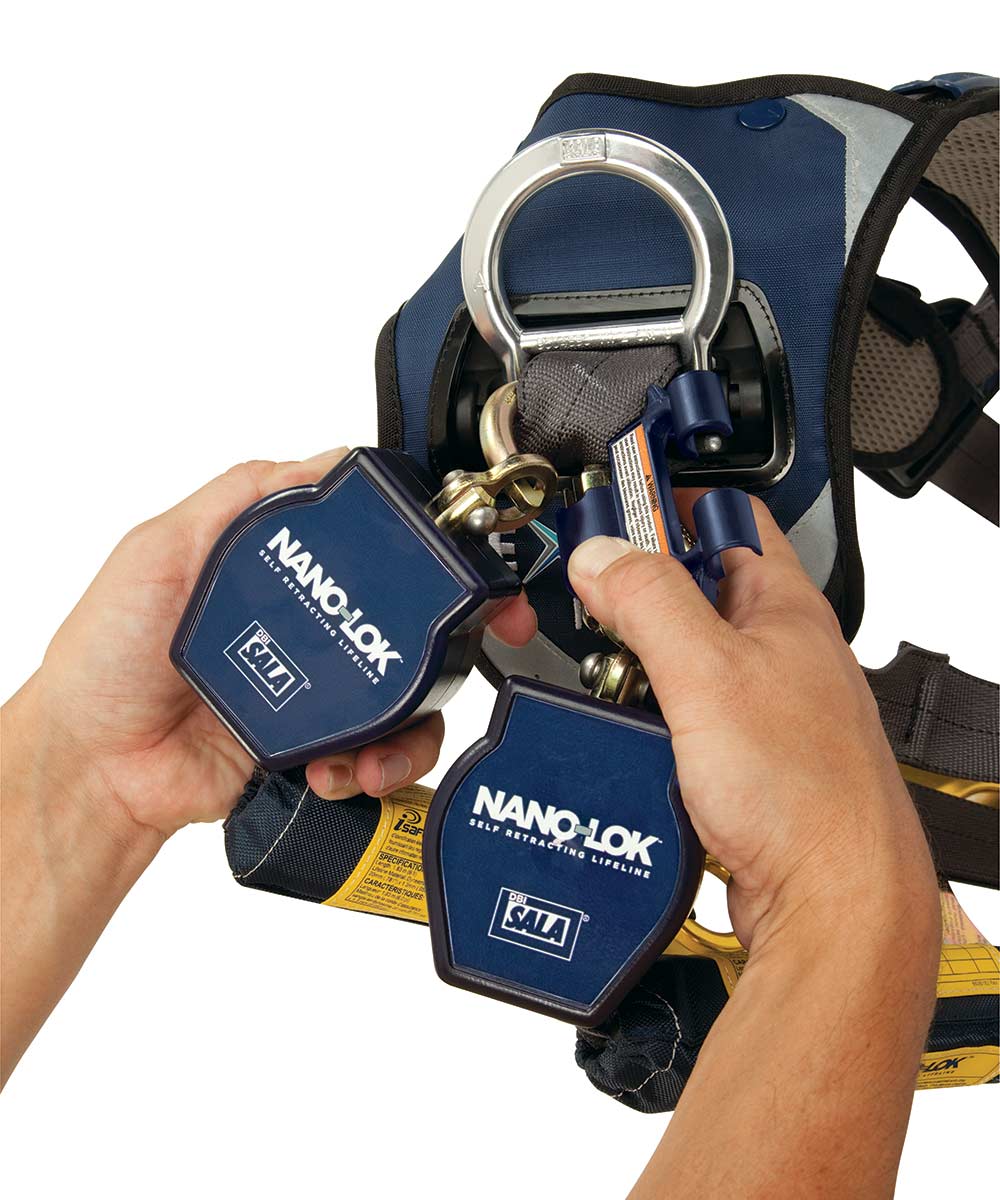

  • Built-in connector for single-leg SRL direct attachment to harness
  • 9 ft. (2.7m) 3/4″ (19mm) Dyneema® fiber and polyester web lifeline
  • Tie-back self-locking hook on each lifeline
  • Extremely compact, lightweight design
  • Tough and impact resistant thermoplastic housing
  • Swiveling anchorage loops
  • Quick activating speed sensing brake system
  • High capacity external energy absorber and impact indicator
  • i-Safe™ equipped
  • Wide variety of configurations available
  • SKU: DS-3101373

Additional information

Weight 5 lbs
Dimensions 12 × 4 × 2 in
Gate Strength

5,000 lb. (22 kN)

Type

Harness Mounted Tie-Back

Weight (lbs)

5

Meets Exceeds

OSHA 1926.502

Dimensions

56.3 x 3.5 x 2 (in)

Capacity

420 lbs. (190 kg)

SRD Length

9 ft. (2.7 m)

SRD Type

Class Type 1

Manufacturer NAV

DBI-SALA

Industry Type NAV

General Industry

Material Type NAV

3/4" (19mm) wide Dynema Polyester with 1-3/16" (30mm) Nylon Tubular Web, Direct to Harness Back, Twin-Leg Lifeline

Color

Blue w/yellow marker

SRD Type NAV

Class Type 1

SRD Length NAV

9 ft (2.7 m)

Materials

Lifeline Hook: Zinc Plated Steel Housing: Nylon Thermoplastic

Lifeline

3/4" (19mm) wide Dynema Polyester with 1-3/16" (30mm) Nylon Tubular Web

Mounting Type

Direct to Harness Back
