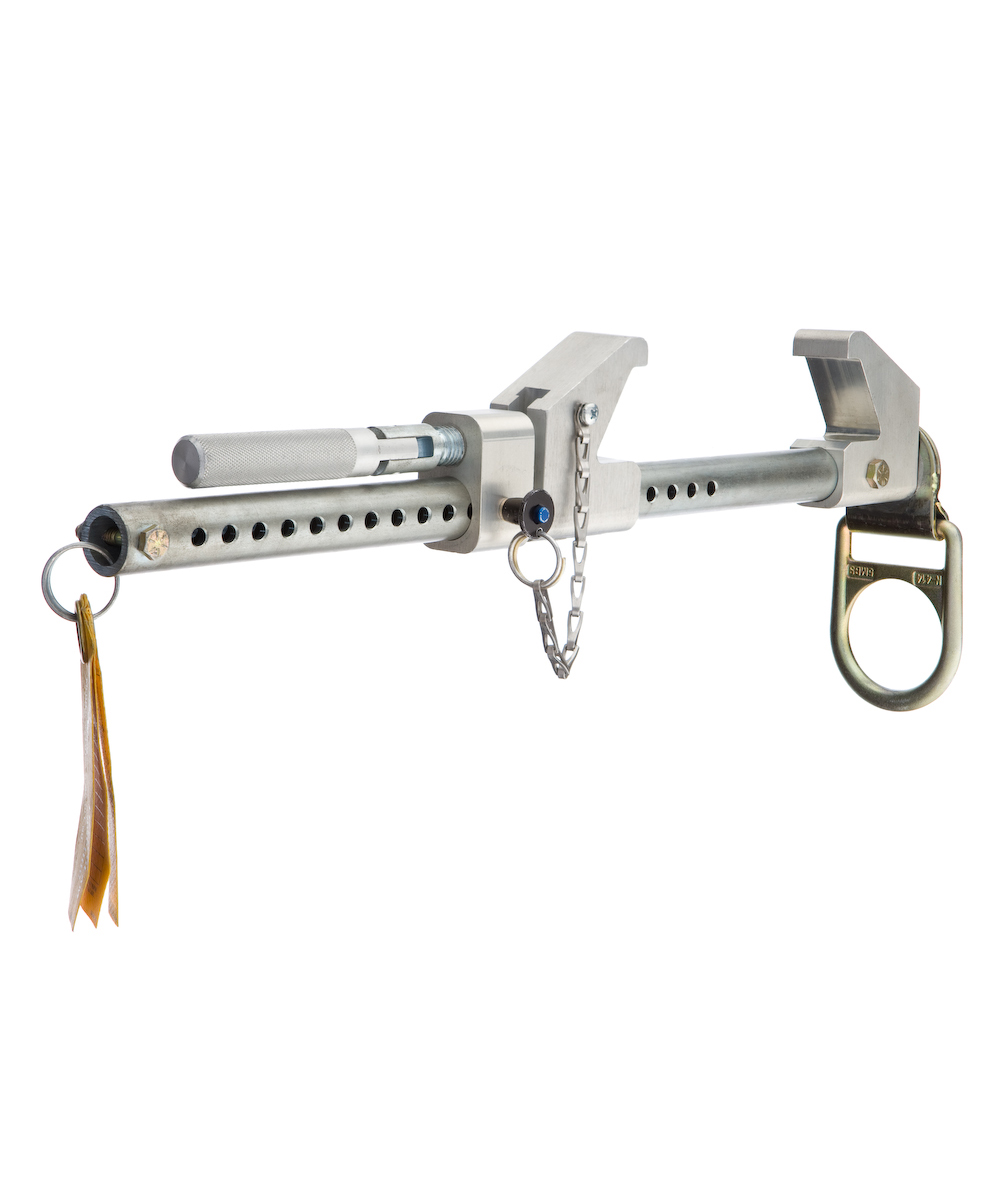

3M™ DBI-SALA™ Fixed Beam Anchor

You don’t have to go far to find an exposed beam flange suitable for it. It’s surprising that DBI-SALA’s Fixed Beam Anchor wasn’t invented 20 years ago. As long as there are a couple of exposed inches, it can be used and installed in seconds. Simply hook its jaw to the flange and slide the…

$767.44$838.46
SKU: DS-21084
Category: Anchors
Tags: ,

Description

  • Easily installed by sliding adjustable hook end sown to the flange and securing a pin
  • Easily adjust to exactly where you want it in any orientation or direction
  • Fits flanges up to 1-1/2″ thick; available in a variety of sizes to accommodate different flange widths
  • Meets or exceeds all applicable industry standards including OSHA and ANSI
  • SKU: DS-21084
  • DS-2108407
  • DS-2108408

This is a very solid connection, and it can be loaded in any direction including up, down, sideways, parallel or perpendicular. The anchoring D-ring swivels (a great feature to promote proper connector gate loading), and the clamp can be moved anywhere along the beam. Other than its size and weight, this is a great anchor. This anchor is specifically designed as a fall arrest anchorage and also makes an excellent endpoint for DBI-SALA’s Sayfline synthetic horizontal lifeline system and other similar DBI-SALA-approved systems. It fits flanges up to 1-1/2″ thick and is available in a variety of sizes to accommodate different flange widths. It meets or exceeds all applicable industry standards including OSHA and ANSI.

Additional information

Weight 5.5 lbs
Dimensions 14 × 12 × 4 in
Min Break

5,000 lbs / 22 kN

Meets Exceeds

ANSI A10.32, ANSI Z359.1, OSHA 1910.66, OSHA 1926.502

Weight (lbs)

5

ANSI Compliant NAV

Yes

Capacity

310 lbs. (141 kg) ANSI / 420 lbs. (190 kg) OSHA

Material

Stainless Steel and Zinc Plated Steel

Attachment Type NAV

Beam, Clamp

Type of Product NAV

Adjustable, Fixed, Reusable, Stainless Steel

Size NAV

12 – 36 in Wide x 0.5 – 2.5 in Thick, 2.5 – 12 in Wide x 1.5 in Thick, 2.5 – 18 in Wide x 1.5 in Thick, 2.5 – 24 in Wide x 1.5 in Thick

Manufacturer NAV

DBI-SALA
